Single Leg Energy-Absorbing Polyester Lanyard

Energy-absorbing lanyards, also known as shock-absorbing lanyards, are used to connect the worker to a secure anchor point. The snap hook nearest to the energy absorber attaches to the dorsal (back) D-ring of the harness and the other connects to the anchor point.

FEATURES:

  • 310 energy absorber
  • Single leg
  • Clear heat shrink tubing protects the label and enables inspection of the energy absorber
  • Available with snap, ladder or scaffold hook connectors
  • Available in fixed or adjustable 3ft, 4ft, 5ft and 6ft lengths
  • Customizable (webbing color, ID/Name inside shrink tube)

SPECIFICATIONS:

  • 1 3/4 inch (45 mm) woven polyester webbing with (Minimum tensile strength of 5000 lbs. 23 kN)
  • Snap, ladder and scaffold hook minimum break load 5000 lbs. (23 kN) and gate rating of 3600 lbs. (16 kN)
  • Maximum deployment length is 11.3 ft. (3.5 m)
  • Maximum free fall distance CANNOT exceed 6 ft. (1.8 m)
  • Maximum capacity including clothing and equipment must be at least 110 Lbs. (50 kg) and not exceed 310 Lbs. (140 kg)
  • Certified to CSA Z259.11-17
Add to quote +
Category:

Part Numbers

Part Numbers: Snap​



LS1M8P00S00S36D0
3ft, fixed length, snap hooks

​LS1M8P00S00S48D0
4ft, fixed length, snap hooks

​LS1M8P00S00S60D0
5ft, fixed length, snap hooks

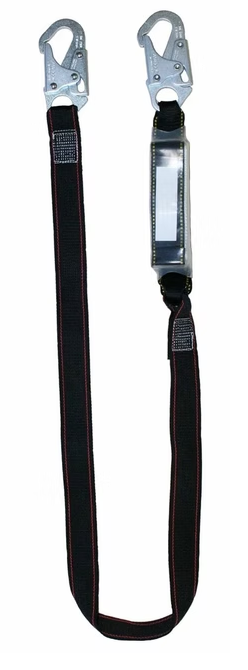

​LS1M8P00S00S72D0
6ft, fixed length, snap hooks

​LS3M8P00S00S36D0
3ft, adjustable, snap hooks

​LS3M8P00S00S48D0
4ft, adjustable, snap hooks

​LS3M8P00S00S60D0
5ft, adjustable, snap hooks

​LS3M8P00S00S72D0
6ft, adjustable, snap hooks



Part Numbers: Snap/Ladder​



LS1P8P00F01F36B0
3ft, fixed length, snap/ladder hook

​LS1P8P00F01F48B0
4ft, fixed length, snap/ladder hook

​LS1P8P00F01F60B0
5ft, fixed length, snap/ladder hook

​LS1P8P00F01F72B0
6ft, fixed length, snap/ladder hook

​LS3P8P00F01F36B0
3ft, adjustable, snap/ladder hook

​LS3P8P00F01F48B0
4ft, adjustable, snap/ladder hook

​LS3P8P00F01F60B0
5ft, adjustable, snap/ladder hook

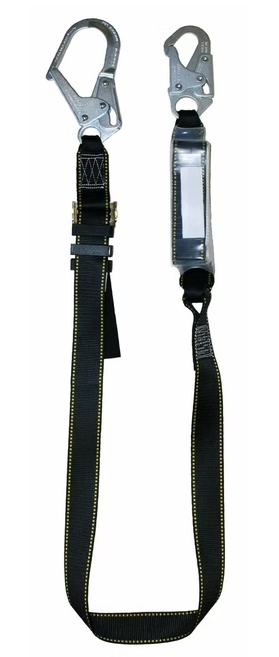

​LS3P8P00F01F72B0
6ft, adjustable, snap/ladder hook



Part Numbers: Snap/Scaffold​



LS1M8P00S02S36D0
3ft, fixed length, snap/scaffold hook

​LS1M8P00S02S48D0
4ft, fixed length, snap/scaffold hook

​LS1M8P00S02S60D0
5ft, fixed length, snap/scaffold hook

​LS1M8P00S02S72D0
6ft, fixed length, snap/scaffold hook

​LS3M8P00S02S36D0
3ft, adjustable, snap/scaffold hook

​LS3M8P00S02S48D0
4ft, adjustable, snap/scaffold hook

​LS3M8P00S02S60D0
5ft, adjustable, snap/scaffold hook

​LS3M8P00S02S72D0
6ft, adjustable, snap/scaffold hook
