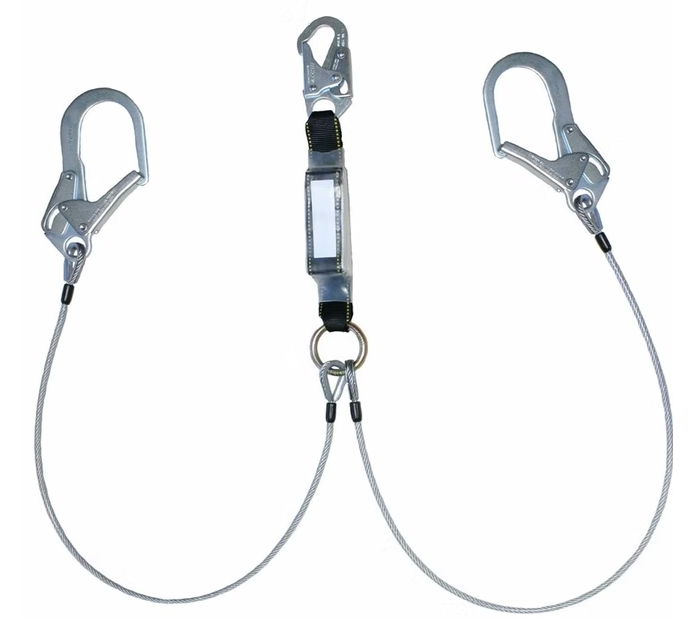

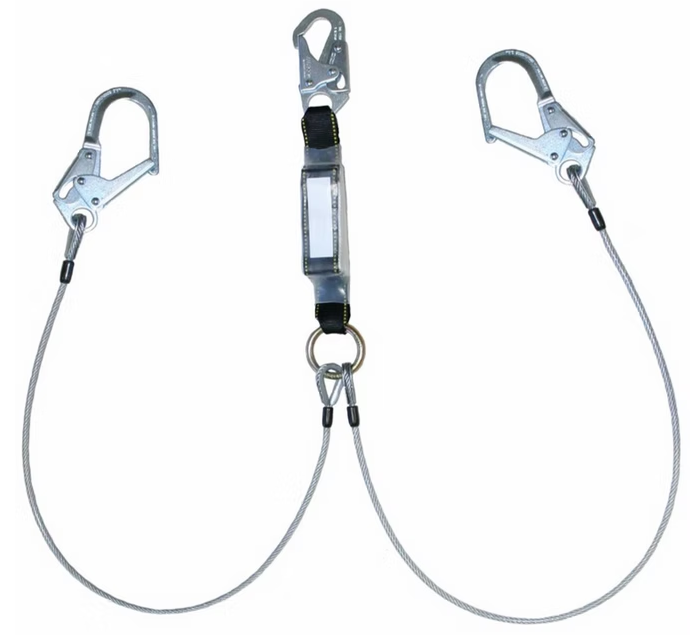

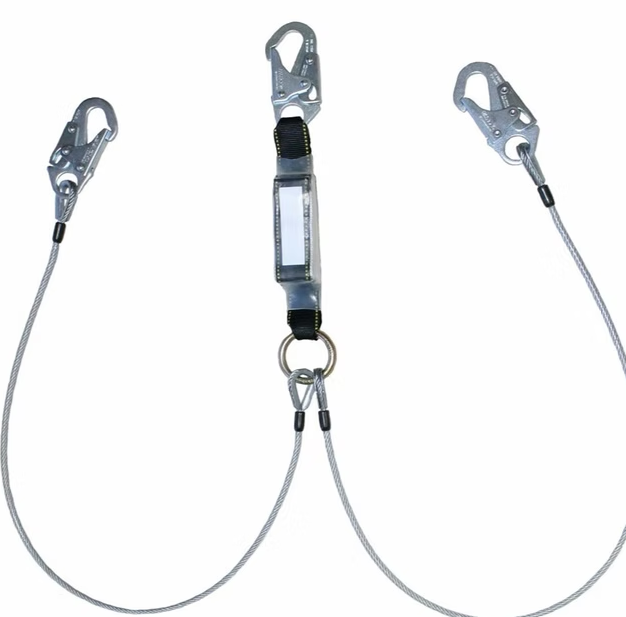

Twin Leg Energy-Absorbing Cable Lanyard

Cable energy-absorbing lanyards also known as cable shock-absorbing lanyards, are used for welding, high heat environments, painting, re-surfacing, foam insulating, and working in close proximity to sharp edges. The snap hook nearest to the energy absorber attaches to the dorsal (back) D-ring of the harness and the other connector connects to the anchor point.

FEATURES:

• 310 energy absorber
• Twin leg for 100% tie-off
• Clear heat shrink tubing protects the label and enables inspection of the energy absorber
• Available with snap, ladder or scaffold hook connectors
• Available in fixed 3ft, 4ft, 5ft and 6ft lengths
• Add ID/name inside shrink tube)

SPECIFICATIONS:

• 1/4 in-5/16 in clear PVC coated galvanized cable with minimum tensile strength of 5000 lbs. (23 kN)
• Snap, ladder, and scaffold hook minimum break load 5000 lbs. (23 kN) and gate rating of 3600 lbs. (16 kN)
• Maximum deployment length is 11.3 ft. (3.5 m)
• Maximum free fall distance CANNOT exceed 6 ft. (1830 mm)
• Maximum capacity including clothing and equipment must be at least 110 Lbs. (50 kg) and not exceed 310 Lbs. (140 kg)
• Certified to CSA Z259.11-17
